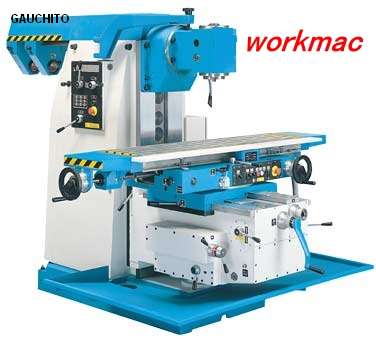

FRESADORA UNIVERSAL UF5
FRESADORA UNIVERSAL UF5
- cabezal tipo hurón
- mesa giratoria 45 grados
- peso 3500 kg
- gran variedad de avances
|
Specificationes UF 5 |
|
MESA |
360x1500 mm |
|
ANGULO DE GIRO DE MESA |
45° |
|
RECORRiDO EN X |
1150 mm |
|
Mechanical |
1130 mm |
|
RECORRIDO EN Y |
360mm |
|
Mechanical |
340 mm |
|
RECORRIDO EN Zl |
460 mm |
|
Mechanical |
440 mm |
|
T-slots |
(5) 18 mm |
|
T-slot distancia |
63 mm |
|
Dist. hor. husillo mesaa |
30 - 490 mm |
|
Dist. vertical husillo mesa |
170 - 630 mm |
|
avances |
X-axis |
40 - 1000 mm/min |
|
Y-axis |
40 - 1000 mm/min |
|
Z-axis |
16-416 mm/min |
|
avances rapidos |
X-/Y-axis |
2500 mm/min |
|
Z-axis |
1040 mm/min |
|
husillo |
horizontal |
ISO 50 |
|
vertical |
SK 40 |
|
Ø aguj de husillo |
horizontal |
29 mm |
|
vertical |
28 mm |
|
velocidad de husillo |
horizontal |
(18) 32-1600 min -1 |
|
vertical |
(12) 36-1600 min-1 |
|
motor |
horizontal spindle |
7.5 kW |
|
vertical spindle |
5.5 kW |
|
motor de avance |
2.2 kW |
|
peso |
3550 kg |
|
Dimensiones (L x W x H) |
2680 x 2260 x 2000 mm |
Fresadora
Universal UM4
- X-axis doble guía
- embrague electromagnético para proteger la caja
- Pesada con control de ciclo
- Cabezal horizontal y vertical
|
UM 4 |
|
Distancia entre husillo y mesa |
min. |
30 mm |
|
max. |
490 mm |
|
Distance between vertical column ways and table center |
min. |
280 mm |
|
max. |
640 mm |
|
Distance husilo y boom |
150 mm |
|
Distance entre piso e husillo |
1430 mm |
|
mesa |
320x1350 mm |
|
agulo girat de mesa |
45° |
|
Longitudinal |
Manual |
1000 mm |
|
Mechanical |
980 mm |
|
transversal |
Manual |
360 mm |
|
Mechanical |
340 mm |
|
Vertical |
Manual |
460 mm |
|
Mechanical |
440 mm |
|
T-slots |
5 |
|
ancho de T-slots |
18 mm |
|
Distancia entre T-slots |
63 mm |
|
avances |
18 |
|
veloc de avance |
Long. feed |
12.5 - 630 mm/min. |
|
Cross feed |
12.5 - 630 mm/min. |
|
Vertical feed |
5.2 - 262 mm/min. |
|
avance rapido |
Long. feed |
2500 mm/min. |
|
Cross feed |
2500 mm/min. |
|
Vertical feed |
1040 mm/min. |
|
husillo |
ISO 50 |
|
agujero de husillo |
27 mm |
|
diametro de huslli |
110 mm |
|
velocidades de husillo |
18 |
|
rpm |
normal |
32 - 1600 min-1 |
|
motor |
Power |
7.5 kW |
|
Speed |
1410 min-1 |
|
motor de avance |
Power |
2.2 kW |
|
Speed |
940 min-1 |
|
Dimensions (L x W x H) |
2622x2100x1780 mm |
|
peso |
2850 kg |
|
